Gas strut 10-23 Stroke 340

£71.61 £59.68 excl. VAT



Rod 10mm (0.39")
Cylinder 23mm (0.91")
Stroke 340mm (13.39")
Length 722mm (28.43")
Force 80N to 1250N
Thread M8 (metric)
Progression 30%

View this gas spring in our configurator.
Category:

Download CAD file:

.dxf .dwg .stp

10-23-340-722

Mounting parts:

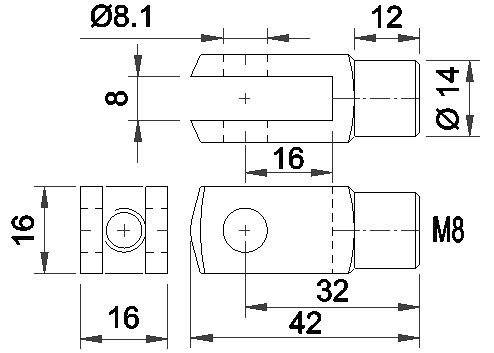

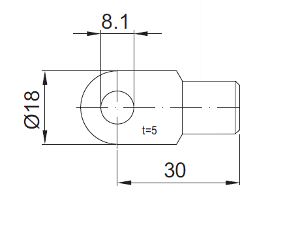

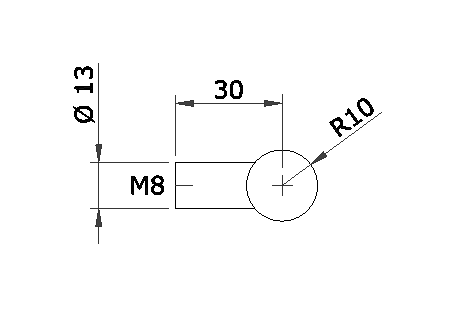

M8 Eye 30mm (5mm thickness, hole 10.1mm)M8 Rod end plasticM8 Elbow (thread M10)M8 Axial elbowM8 Eye plastic 21/24mm (18mm thickness, hole 8.1mm)M8 Fork (48mm)M8 Eye 19mm (10mm thickness, hole 10.1mm)M8 Rod endM8 Plastic elbow (18mm)M8 Eye (30mm, thickness 5mm)M8 Eye (16mm)M8 Eye (24mm)M8 Elbow (20mm) (max. 680N)M10 Eye and bearing shoe (max. 1200N)M10 Eye and bearing shoe (max. 1200N)M10 Eye and bearing shoe (max. 1200N)M10 Eye and bearing shoe (max. 1200N)M10 Eye and bearing shoe (max. 1200N)M10 Eye and bearing shoe (max. 1200N)M10 Eye and bearing shoe (max. 1200N)M10 Eye and bearing shoe (max. 1200N)M10 Eye and bearing shoe (max. 1200N)M10 Eye and bearing shoe (max. 1200N)
